Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining | 2.0X19 Strips | 50mm | Hesly Hexsteel China

Name: Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining 20X19 Strips 50mm Hesly Hexsteel China
Brand: HESLY
Price: 1 USD

$Wholesale Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining | 2.0X19 Strips | 50mm | Hesly Hexsteel China from china suppliers$ $Wholesale Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining | 2.0X19 Strips | 50mm | Hesly Hexsteel China from china suppliers$ $Wholesale Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining | 2.0X19 Strips | 50mm | Hesly Hexsteel China from china suppliers$ $Wholesale Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining | 2.0X19 Strips | 50mm | Hesly Hexsteel China from china suppliers$

Brand Name : HESLY

Model Number : HM-20/19/50

Certification : ISO:9001：2008

Place of Origin : HESLY METAL MESH, Anping, China

MOQ : 1 ㎡

Price : Negotiated according to the order

Payment Terms : TT/LC

Supply Ability : 800 square meter/day

Delivery Time : As Per the Order (hexmetal in stock)

Packaging Details : Steel Pallet

Wire Diameter : 2.0mm

Material : SUS321 steel plate

Type : Perforated Mesh

Application : Protecting Mesh

Technique : Perforated

Contact Now

Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining | 2.0x19mm strips | 9600X2000mm| Hesly Hexsteel China

Hex Steel (hex mesh) are sheets of mild/carbon or stainless steel made up of hexagonal cells that are punched & welded together to form custom sheets to fit specific applications. Hex steel can be rolled to fit round vessels and are used in conjunction with Monster Tabs, Flex Tabs, Corner Tabs. Hex steel is used in highly abrasive applications and are available in many different heights based on the lining thickness.

Hex mesh grid refractory lining is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. The hex steel mesh acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$	$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$

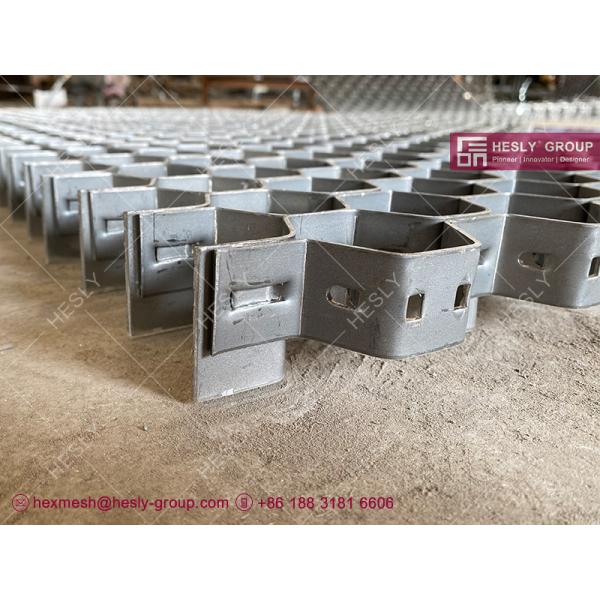

Hexsteel: Bonding Hole Type	Hexsteel: Pronges Type

Application of HESLY hex mesh grid

As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

Raw Material Typical Service Temperature

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Common Specification Sheet

ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
Remark	A/F	Min: 40mm Max: 100mm
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

Photo Gallery - HEXSTEEL

**Photo Gallery - HESLY Hexsteel Mesh**
$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$	$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$

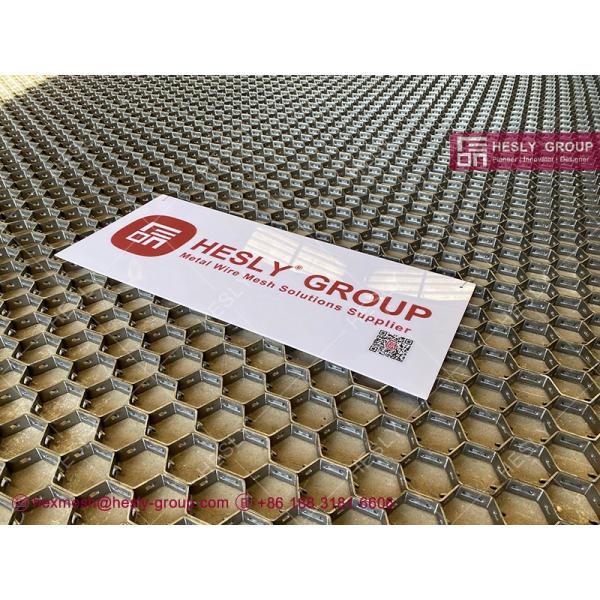

304 Hexsteel Grate	310S Hex Metal Grating
$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$	$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$

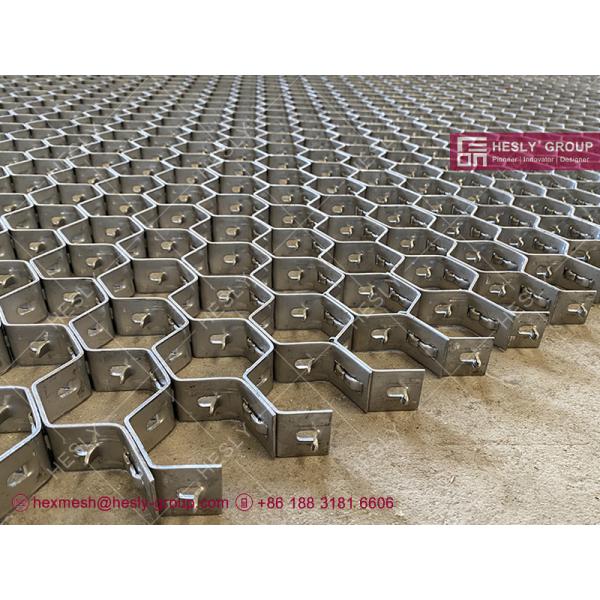

Hex Steel With Pronges	ST37 Hexsteel
HESLY's Armour-Anchors can be used in combination with Hexmetals / Flexmetals or as stand alone systems.
$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$	$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$
Steel Rod Formed Anchors	Plate Punched Anchors

Package and Delivery

$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$	$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$
Refractory Hexsteel Lining Holder	HESLY Hexsteel China Factory

$Stainless steel 321 08X18H10T Hexsteel for Furnace Wall Refractory Lining \| 2.0X19 Strips \| 50mm \| Hesly Hexsteel China$
